CAT 3406 Diesel Engine

Product Description

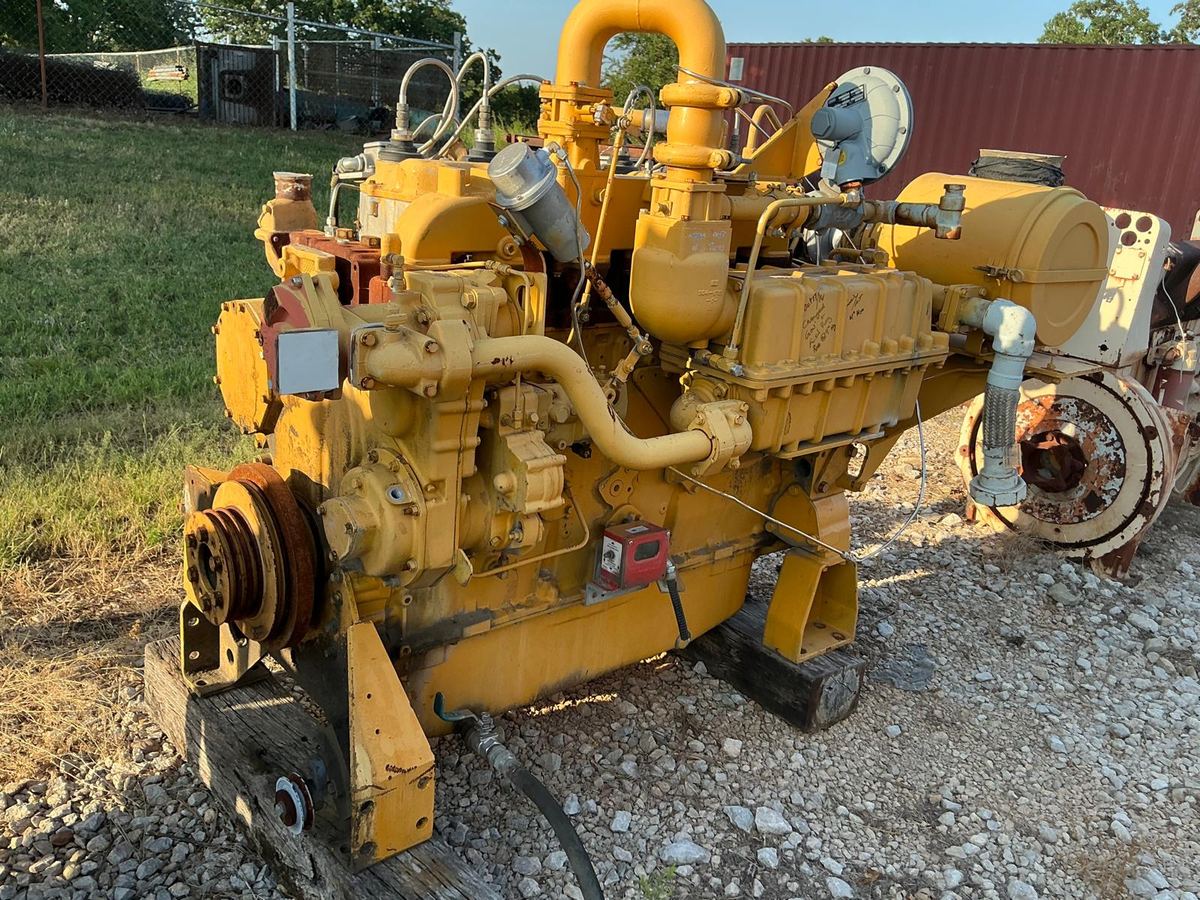

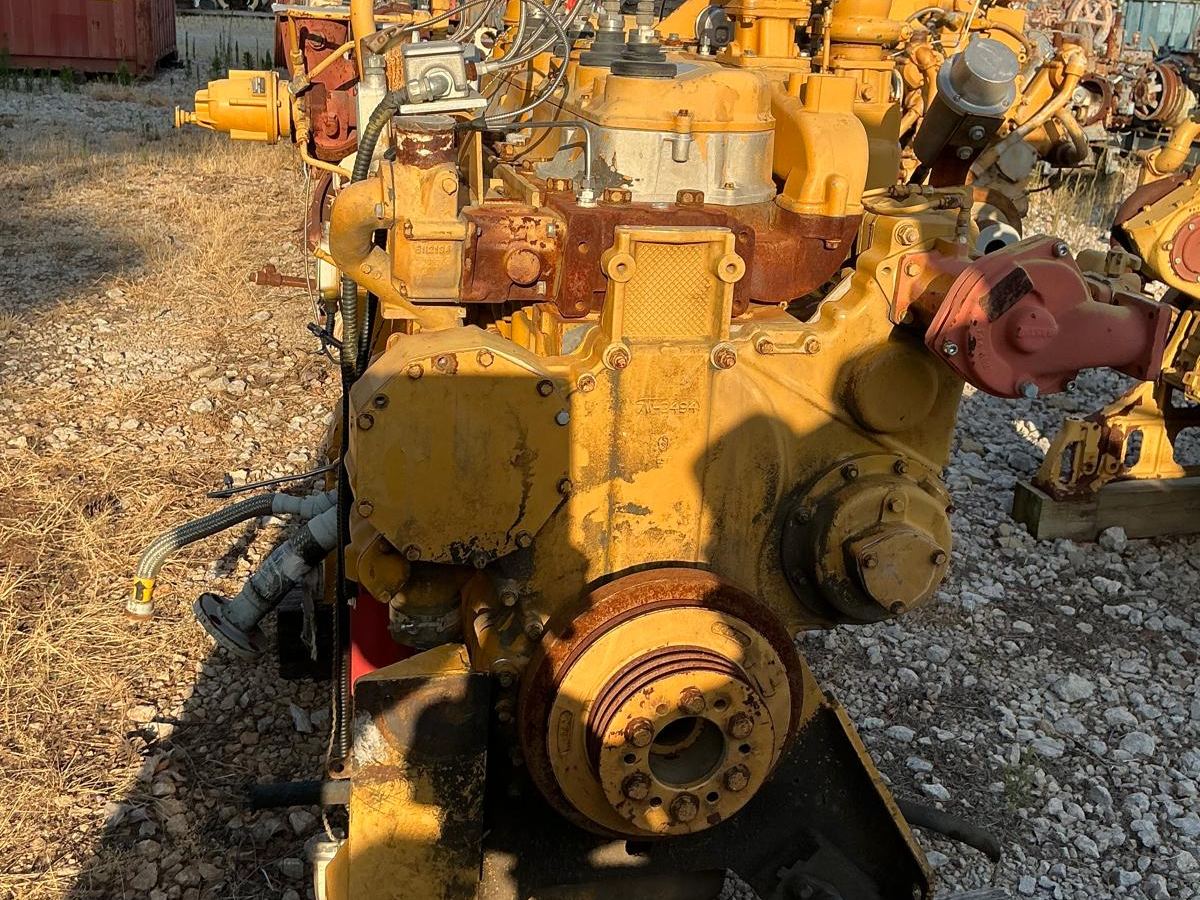

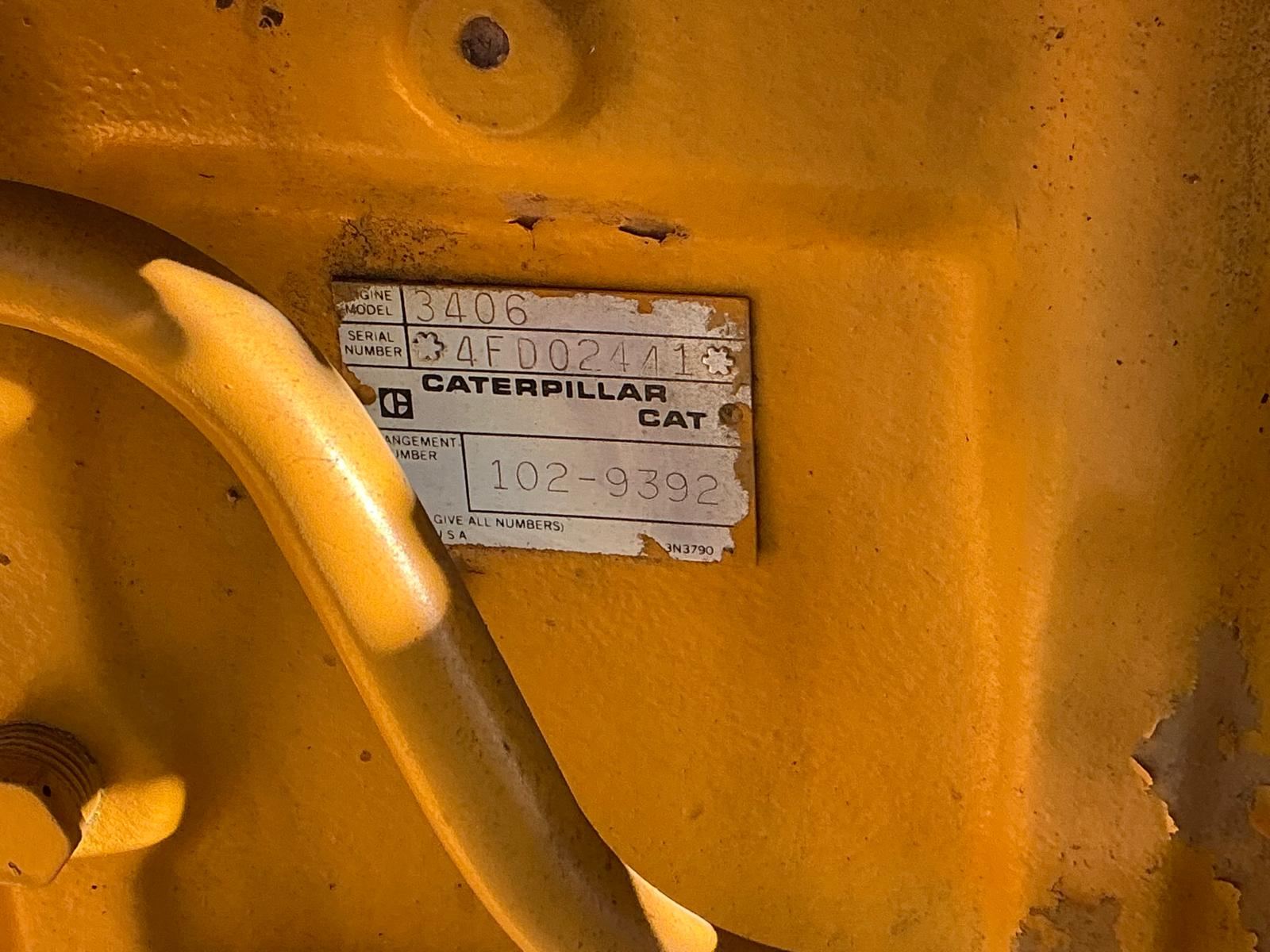

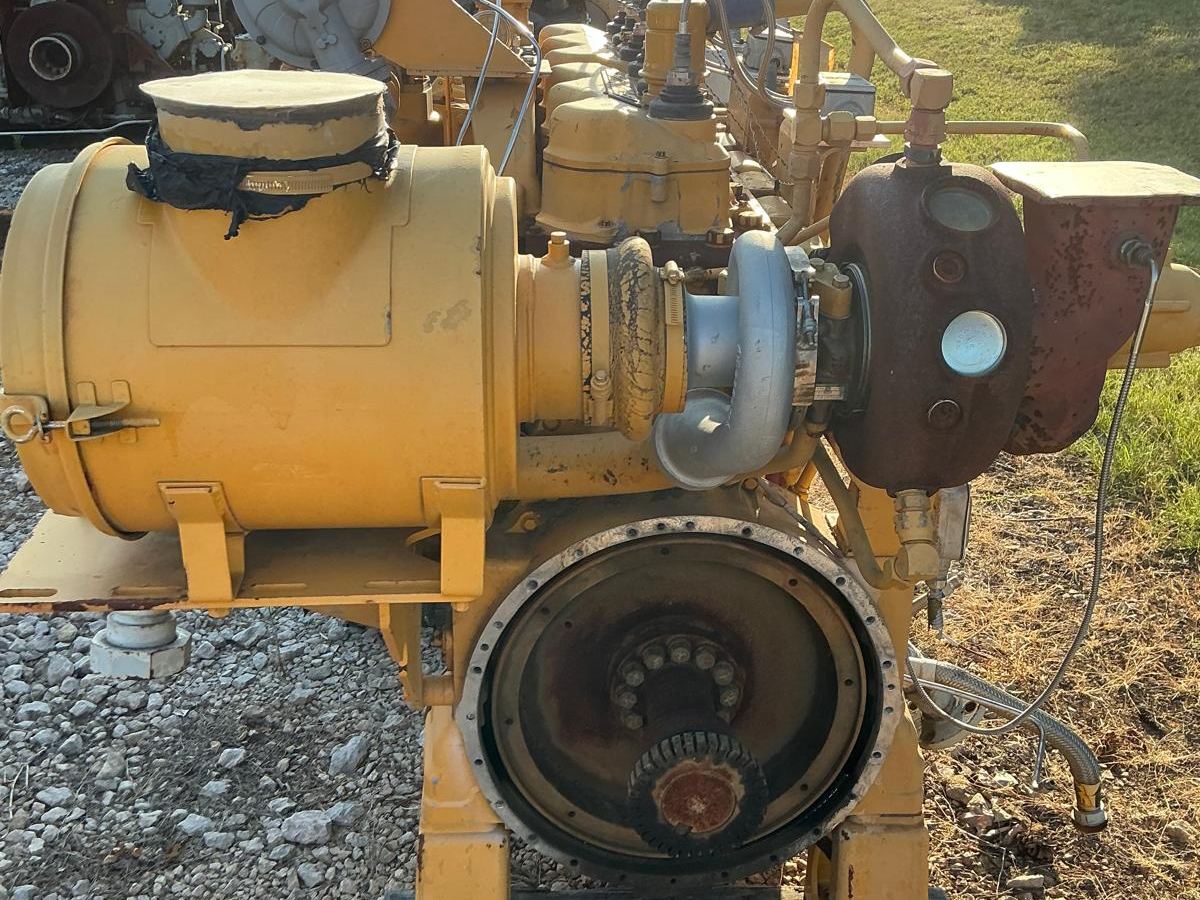

Caterpillar 3406 diesel engine, serial 4FD02411, arrangement number 102-9392. The unit is a dressed engine with the turbocharger and exhaust manifold in place, mounted on a wooden skid for transport; it is not a complete power unit. No radiator, control panel or generator end is fitted, and the paint is the original Caterpillar yellow with surface rust along the exhaust side. The manufacturer plate is photographed and included in the gallery, but it carries model, serial and arrangement only: no horsepower or RPM rating is marked on it, so no output is published here. Condition was not verified beyond the photographs. Published 3406 industrial ratings run from roughly 250 to 465 hp depending on arrangement and duty, and the wider 3406A/B/C/E family spans 310 to 800 hp across applications. Arrangement 102-9392 identifies the build, but that build's rating was not confirmed, so no output is published for this unit.
